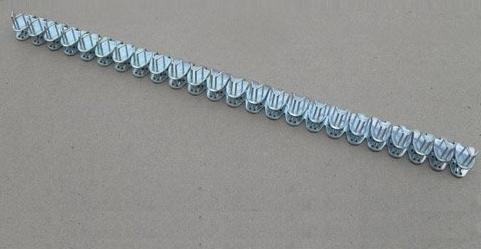

V6输送带金属扣 V6 Belt Fastener

1.连体结构设计，使安装更快捷，更省力，提高工作效率。双排大跨度钢钉，较大的扣钉宽度，咬合面积大，受力均匀，抗拉力增强，使输送带的拉力提高避免破坏输送带骨架。
2.背面凹槽式设计，钢钉可反扣在输送带里，从而避免发生脱钉，保证输送带骨架整体性；
3.较低的断面和扣体前端斜面设计，通过减少输送带扣与包覆层、回转对轮、清洁器刀口及通过滚筒时的接触，从而降低磨损，延长寿命。

连体皮带扣特点：
1．连体式带扣：输送带沿带宽度方向可用一条带扣装订；仓储和运输过程中不会造成散落而损耗。

2．适用带厚范围广：由于扣钉固定带扣后其钉脚能钩回输送带。可以一种厚度规格的带扣能满足6-12mm厚度的输送带装订联结，而方便客户的管理。

3．接头强度高：由于扣钉呈V型布置，使输送带在装订截面上的扣钉的相对密度少，减少对带芯的损伤。输送带运行中带扣得受力分布均匀，所以输送根带接头强度高，使用寿命长。

4．接头直线度好：用锤式钉扣 机装订，将输送带三点式定位后，采用交叉次序钉扣，使钉扣部位的输送带挤压变形均匀分布，加以连体扣本身平直度好，使输送带接头的直线度好，联结时，便于穿入串销；运行时，能减少输送带跑偏的成因。

5．运行中撞击小：地平的板式扣体和呈扇形面并具有导入角扣体前端，可减少运行中对托辊，滚筒和清扫器的撞击和磨损。

6．改善串销的受力：由于采用扣体尾部宽扣环结构，可减少串销的挤压应力，提高串销使用寿命。

V6皮带扣技术参数：

适用输送带厚度	适用输送带强度	使用最小滚筒直径	适用穿销直径
6-12mm	≤1250N/mm	280mm以上	Φ6mm
适用输送带宽度规格有：650mm、800mm、1000mm、1200mm四种规格。

V6  belt Fastener buckle

Detailed description:

V6 strong belt buckle, also known as: V6 high-strength belt buckle V6 belt buckle, V6 belt buckle, 650 mm V6 belt buckle, 800 mm V6 belt buckle



The V6 belt buckle is suitable for conveyor belts with a strength of less than 1000 N/mm. For one type of specification, a conveyor belt with a thickness of 6-12 mm is suitable. The shape of the splint is chamfered at a small angle. The flexible pin is made of stainless steel with a diameter of 7mm. It has long-lasting durability and reduces the wear of the scraper and the roller.



V6 Siamese Belt Buckle Advantage Description:

The V6 joint belt buckle is made of high-quality steel and has been carefully machined to provide high tensile strength, high hardness and no breakage.

1. The design of the joint structure makes the installation quicker, more labor-saving and improves work efficiency. Double-row large-span steel nails, large buckle nail width, large occlusal area, uniform force, and increased tensile strength, so that the tension of the conveyor belt is increased to avoid damaging the conveyor belt skeleton.

2. The back groove design, the steel nail can be reversed in the conveyor belt, so as to avoid the occurrence of nail removal and ensure the integrity of the conveyor belt skeleton;

3. The lower section and the front end of the button body are designed to reduce wear and extend the life by reducing the contact between the belt buckle and the coating, the rotating pair of wheels, the cleaner blade and the roller.



One-piece belt buckle features:

1. One-piece buckle: The conveyor belt can be bound by a buckle along the width of the belt; it will not be scattered and lost during storage and transportation.

2. Applicable belt width is wide: the nail can be hooked back to the conveyor belt after the buckle is fixed. The belt buckle of a thickness specification can meet the belt binding binding of 6-12mm thickness, and is convenient for customer management.

3. High joint strength: Due to the V-shaped arrangement of the buckles, the relative density of the fasteners on the binding section is small, reducing the damage to the core. When the belt is in operation, the belt is evenly distributed, so the joint of the conveyor belt has high strength and long service life.

4. The straightness of the joint is good: the hammer-type button machine is used for binding, and after the three-point positioning of the conveyor belt, the cross-order fastener is used to make the conveyor belt of the buckle portion evenly distributed and deformed, and the flat buckle itself has a good straightness. The straightness of the conveyor belt joint is good, and it is easy to penetrate the string pin when connecting; when running, it can reduce the cause of the deviation of the conveyor belt.

5. Small impact during operation: the flat plate body and the scalloped surface with the leading end of the angled button body reduce the impact and wear on the rollers, rollers and cleaner during operation.

6. Improve the force of the string pin: Due to the wide buckle ring structure at the tail of the button body, the crushing stress of the pin pin can be reduced and the service life of the pin pin can be improved.



V6 belt buckle technical parameters:

Suitable for conveyor belt thickness

Suitable conveyor belt strength







package:

V6 belt buckle: a box of 10 boxes, 1 box, 1 pair, a box of belt buckles can be nailed a 800cm wide belt
